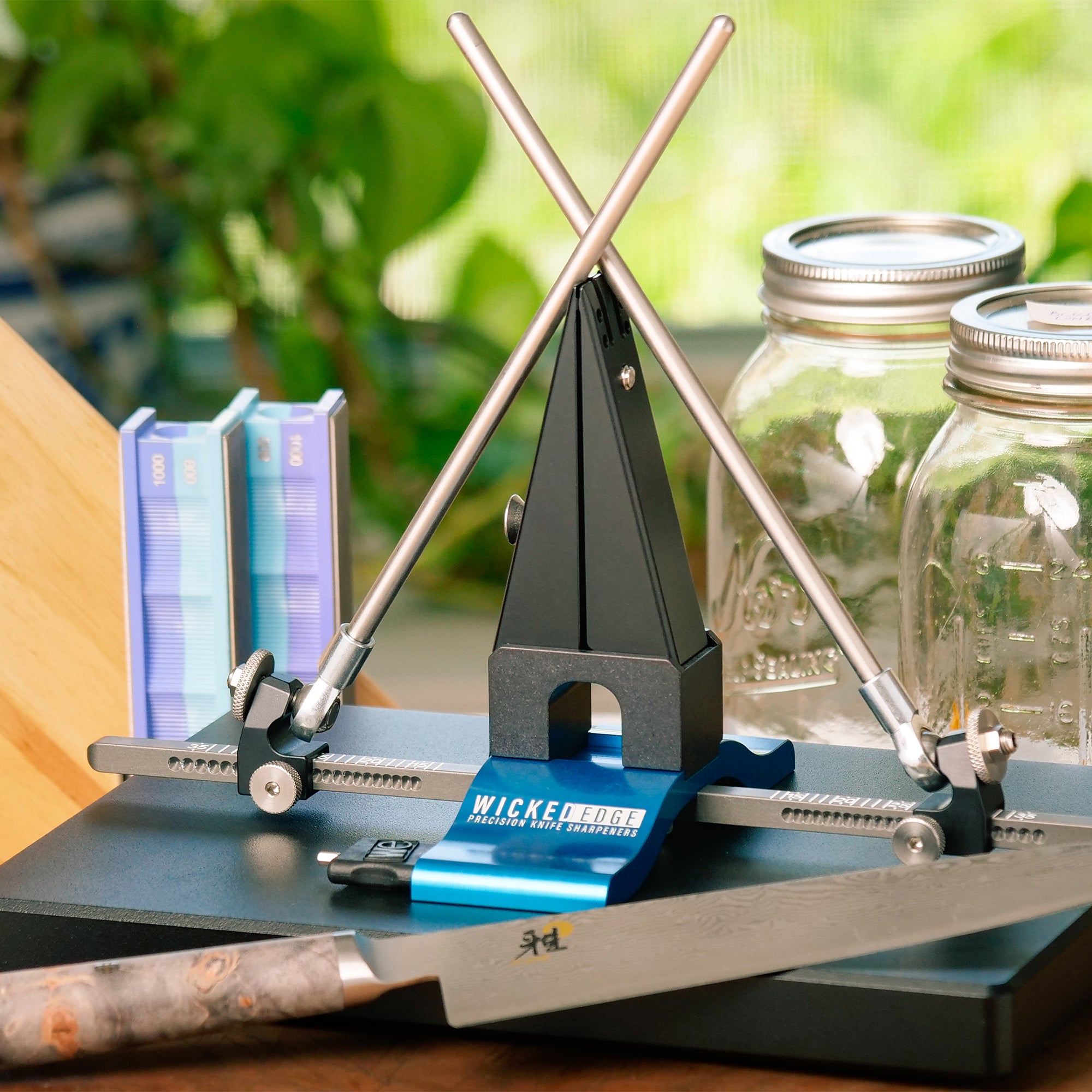

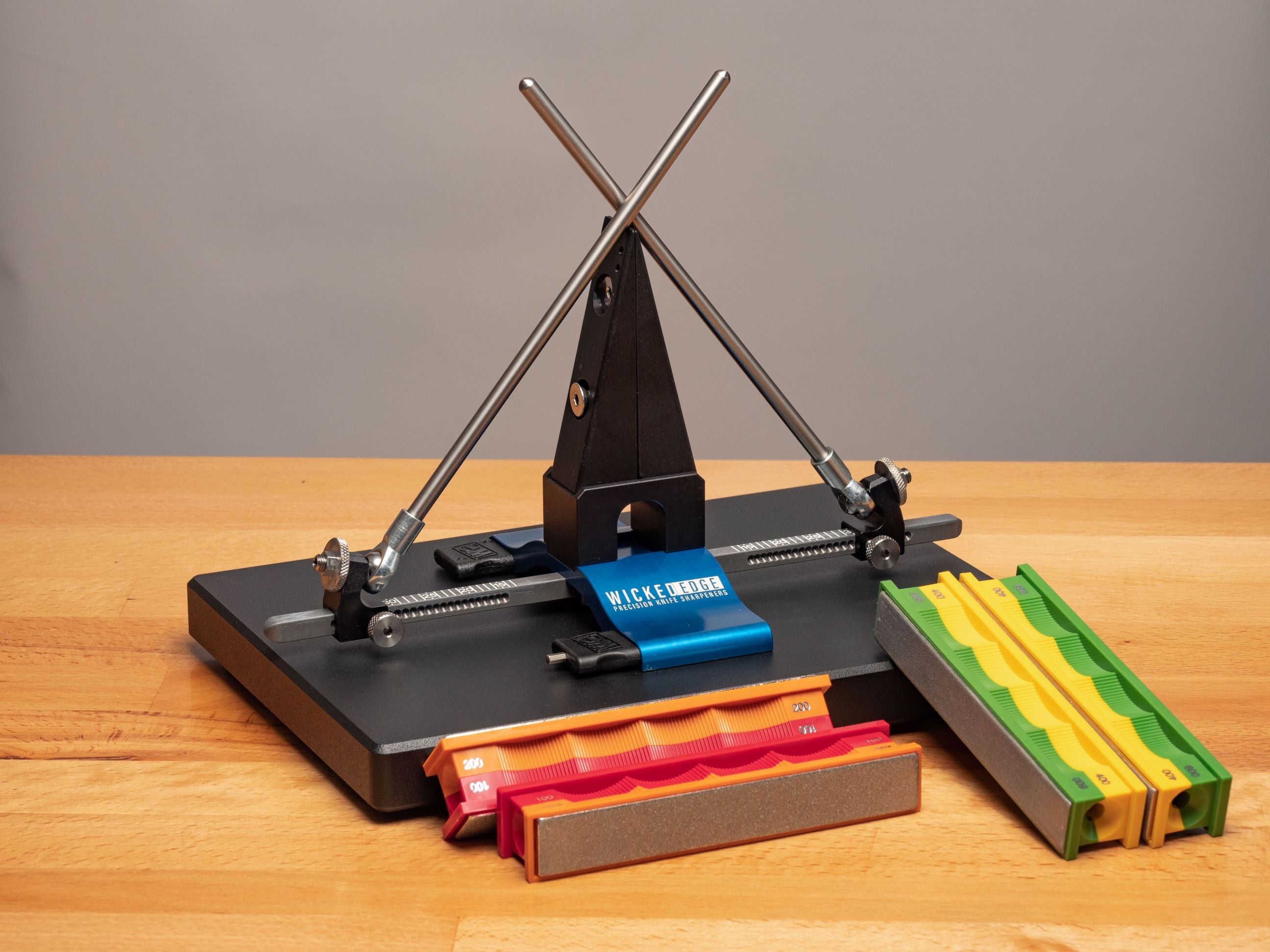

Precision Sharpener - WE120

$375.00

In stock

  • Precision Sharpener - WE120
  • Precision Sharpener - WE120
  • Precision Sharpener - WE120
  • Precision Sharpener - WE120

No Base

PaperStone Base

Aluminum Base

Granite Base

Shopify secure badge
hello

The WE120 Sharpener has all the great features of the WE100, but in addition it includes a longer Degree Bar and a Riser Block which extend the angle range to 13-35 degrees per side. It also includes our Micro-Adjustable Ball-Joint system which allows for angle changes in 0.05 degree increments.

Base Sold Separately on the "No Base" model

Description

The WE120 Sharpener has all the great features of the WE100, but in addition it includes a longer Degree Bar and a Riser Block which extend the angle range to 13-35 degrees per side. It also includes our Micro-Adjustable Ball-Joint system which allows for angle changes in 0.05 degree increments.

Base Sold Separately on the "No Base" model

New to the 2017 model

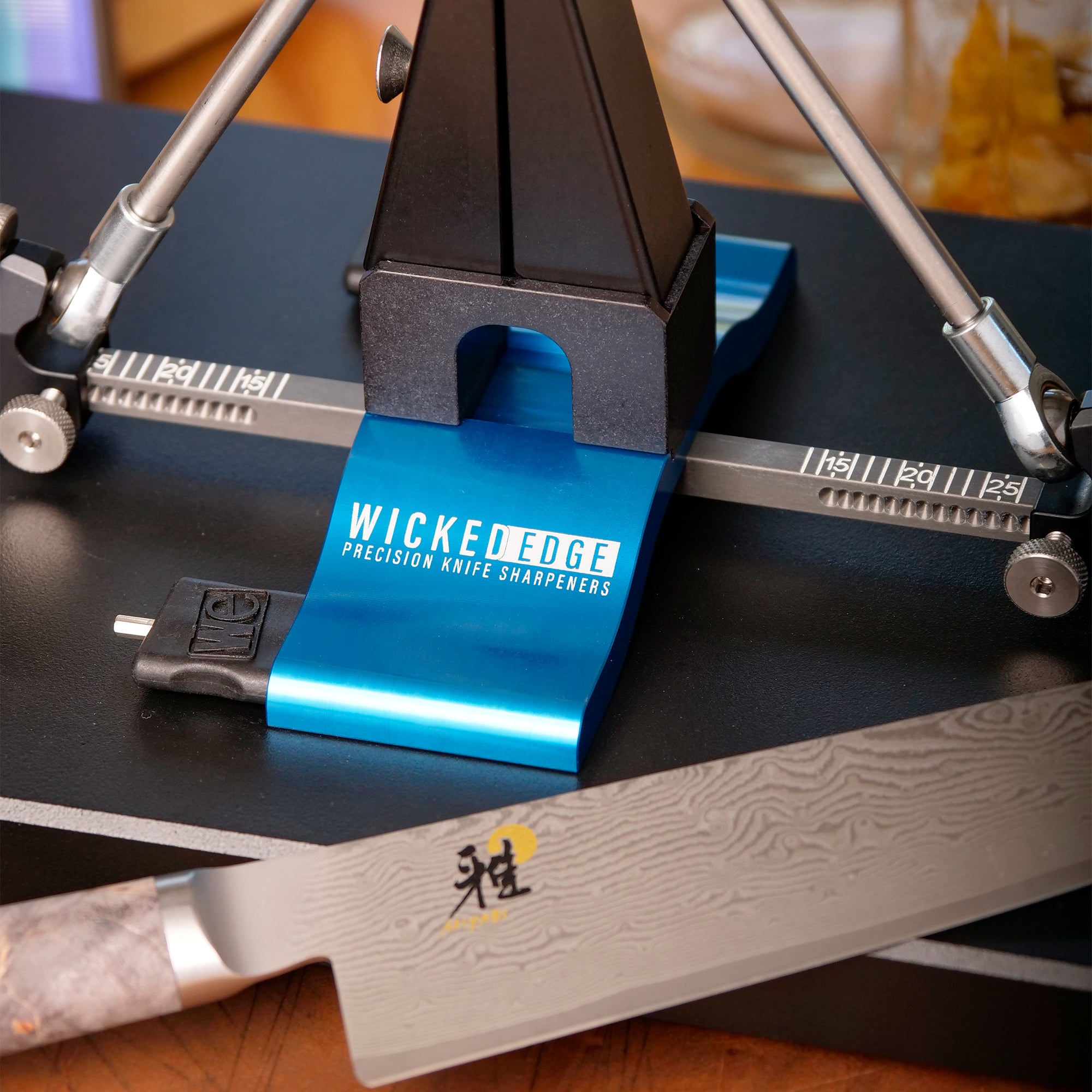

We changed the shape of the L-bracket and incorporated a jam-nut locking system which secures the micro adjustment feature. The shape of the Riser, which sits between the sharpener's base and it's vise, was changed from a square block to an arch.

Features

  • Guide Rod pivots: Ball-Joint/L-bracket
  • Angle Range: 13-35 degrees
  • Angle Setting: Manual, independent angle adjustment on both sides of the sharpener
  • Main angle Adjustment: 1 degree increments
  • Micro Adjustment: 0.05 degree increments
  • Clamping System: Parallel-face jaws with stainless steel inserts, manually operated with an Allen Key
  • Knife Alignment: Standard Wicked Edge Alignment Guide
  • Blade Depth Regulation: Standard Wicked Edge Depth Key with two settings for height adjustment
  • Guide Rod Length: 8 inches
  • Max Clamping Width: 3/8"

Technical Specifications

  • 6061 T6 Aluminum
  • Stainless Steel
  • Weight: 4.8 LBS
  • Dimensions: 11"w x 5.75"d x 5.5"h

Abrasives

  • Coarse 100 Grit / Medium Coarse 200 Grit Diamond Stones (2 ea)
  • Medium 400 Grit / Fine 600 Grit Diamond Stones (2 ea)

We changed the shape of the L-bracket and incorporated a jam-nut locking system which secures the micro adjustment feature. The shape of the Riser, which sits between the sharpener's base and it's vise, was changed from a square block to an arch.

  • Guide Rod pivots: Ball-Joint/L-bracket
  • Angle Range: 13-35 degrees
  • Angle Setting: Manual, independent angle adjustment on both sides of the sharpener
  • Main angle Adjustment: 1 degree increments
  • Micro Adjustment: 0.05 degree increments
  • Clamping System: Parallel-face jaws with stainless steel inserts, manually operated with an Allen Key
  • Knife Alignment: Standard Wicked Edge Alignment Guide
  • Blade Depth Regulation: Standard Wicked Edge Depth Key with two settings for height adjustment
  • Guide Rod Length: 8 inches
  • Max Clamping Width: 3/8"
  • 6061 T6 Aluminum
  • Stainless Steel
  • Weight: 4.8 LBS
  • Dimensions: 11"w x 5.75"d x 5.5"h
  • Coarse 100 Grit / Medium Coarse 200 Grit Diamond Stones (2 ea)
  • Medium 400 Grit / Fine 600 Grit Diamond Stones (2 ea)


Description

The WE120 Sharpener has all the great features of the WE100, but in addition it includes a longer Degree Bar and a Riser Block which extend the angle range to 13-35 degrees per side. It also includes our Micro-Adjustable Ball-Joint system which allows for angle changes in 0.05 degree increments.

Base Sold Separately on the "No Base" model

New to the 2017 model

We changed the shape of the L-bracket and incorporated a jam-nut locking system which secures the micro adjustment feature. The shape of the Riser, which sits between the sharpener's base and it's vise, was changed from a square block to an arch.

Features

  • Guide Rod pivots: Ball-Joint/L-bracket
  • Angle Range: 13-35 degrees
  • Angle Setting: Manual, independent angle adjustment on both sides of the sharpener
  • Main angle Adjustment: 1 degree increments
  • Micro Adjustment: 0.05 degree increments
  • Clamping System: Parallel-face jaws with stainless steel inserts, manually operated with an Allen Key
  • Knife Alignment: Standard Wicked Edge Alignment Guide
  • Blade Depth Regulation: Standard Wicked Edge Depth Key with two settings for height adjustment
  • Guide Rod Length: 8 inches
  • Max Clamping Width: 3/8"

Technical Specifications

  • 6061 T6 Aluminum
  • Stainless Steel
  • Weight: 4.8 LBS
  • Dimensions: 11"w x 5.75"d x 5.5"h

Abrasives

  • Coarse 100 Grit / Medium Coarse 200 Grit Diamond Stones (2 ea)
  • Medium 400 Grit / Fine 600 Grit Diamond Stones (2 ea)
